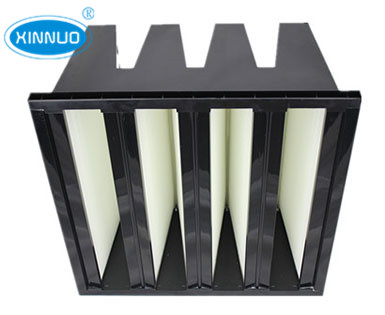

W型亞高效空氣過濾器
W type and efficient air filter
特點Features
●使用壽命長
●大風量、阻力低、容塵量大
●適用于大風量空調通風系統的中級過濾
●Long service life
●Large volume, low resistance and large amount of dust
●For large volume air conditioning and ventilation
system of the intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：塑膠外框 ●分隔物：熱熔膠
●External frane：Plastic box ●Space: glue
●密封物：聚胺脂膠 ●濾料：玻纖濾紙或聚酯纖維（PP）
●Sealant：Gel-glue ●Filter media：Glass fiber filter or polyester fiber (PP)
●使用最高溫度、濕度：80℃、80% ●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數（Standard specification）
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 濾料Filter materials |
XN-8J | 287×287×292 | 800 | ≤125 | 95(F8)/99(F9) | 聚酯纖維 Polyester fibers（PP） 玻璃纖維 Glass fiber |
XN-12J | 490×287×292 | 1200 | ≤125 | 95(F8)/99(F9) | |
XN-20J | 490×490×292 | 2000 | ≤125 | 95(F8)/99(F9) | |
XN-20J | 592×490×292 | 2000 | ≤125 | 95(F8)/99(F9) | |
XN-22J | 592×490×292 | 2700 | ≤125 | 95(F8)/99(F9) | |
XN-16J | 592×287×292 | 1600 | ≤125 | 95(F8)/99(F9) | |
XN-22J | 592×592×292 | 2400 | ≤125 | 95(F8)/99(F9) | |
XN-32J | 592×592×292 | 3200 | ≤125 | 95(F8)/99(F9) |
